Machining



MACHINING IS A CORE COMPETENCY

Since beginning in 1955, we continually invest in our ability to machine complex automotive drivetrain parts. Whether we start from raw materials or experienced parts, we creatively find solutions to machine to the precise specification our Customer's need.

Our experienced Machining Team applies these skills to produce a variety of precision machined parts for multiple industries. We want to help find a solution to your complex machining needs.  We can work with any data file and have expertise in Autodesk Inventor, SolidWorks, and Mastercam.

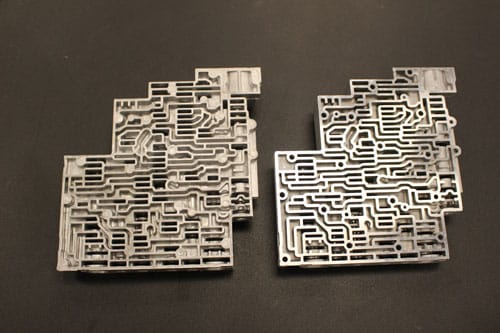

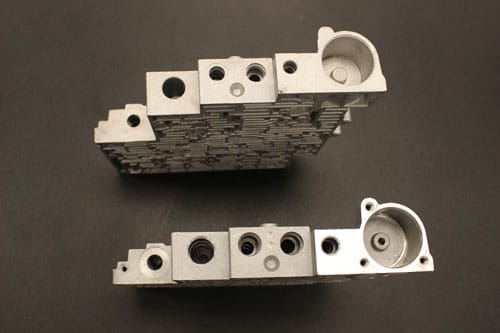

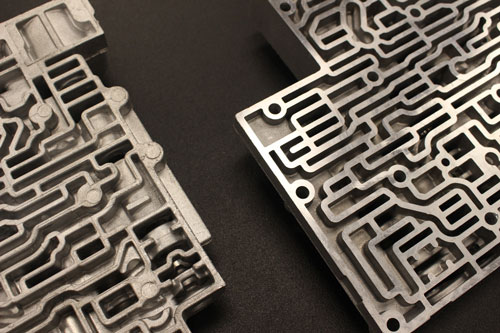

See below examples of our work as well an inventory of our in-house equipment:

collage5
collage_4



IN HOUSE MACHINING EQUIPMENT AND CAPABILITY



DMG_Mori_NHX_5000_2

DMG MORI NHX 5000

  • Max X-axis travel: 28.7 inch
  • Max Y-axis travel: 28.7 inch
  • Max Z-axis travel: 34.6 inch
  • Pallet load capacity: 1100 lb
DMG_Mori_DMU_65_monoBLOCK

DMG MORI DMU-65 (5-Axis)

  • Max X-axis travel: 28.9 inch
  • Max Y-axis travel: 25.6 inch
  • Max Z-axis travel: 22 inch
  • A-axis rotation: ±120 degree
  • C-axis rotation: 360 degree
  • Pallet load capacity: 2205 lb
Doosan_2600ST_1

2x - DOOSAN SMX 2600ST (9-axis)

  • Max turn diameter: 26 inch
  • Max turn length: 60.6 inch
  • Chuck: 10 inch
  • Left spindle power: 35 hp
  • Left spindle speed: 4000 rpm
  • Right spindle power: 35 hp
  • Right spindle speed: 4000 rpm
  • Milling speed: 12000 rpm
  • Milling power: 35 hp
Doosan_Puma_2600

DOOSAN PUMA 2600

  • Chuck size: 10 inch
  • Max speed: 3500 rpm
  • Power: 29.5 hp
  • Max swing: 18.9 inch
  • Machining length: 31.1 inch
  • Tailstock: Yes
  • Magazine Bar Feeder: 72 inch
Doosan_Puma_2100SY

DOOSAN PUMA 2100SY (5-axis)

  • Chuck size: 8 inch
  • Turn diameter: 15.9 inch
  • Max turn length: 20.5 Max
  • Max speed: 5000 rpm
  • Power: 29.5 hp
  • Sub spindle speed: 6000 rpm
  • Sub spindle power: 20 hp
  • Sub spindle: 6 inch
Doosan_DNM_650

DOOSAN DNM 650

  • Max X-axis travel: 50 inch
  • Max Y-axis travel: 26.3  inch
  • Max Z-axis travel: 24.6  inch
  • Max table load: 2204.6 lb
  • Quick set-up tooling plate
  • Renishaw probe
Doosan_DNM_500

DOOSAN DNM 500

  • Max X-axis travel: 40.16 inch
  • Max Y-axis travel: 21.26 inch
  • Max Z-axis travel: 20.8  inch
  • Max table load: 2764 lb
OMAX_5555_Jet_Machining_Center_1

OMAX 5555 PRECISION WATER JET MACHINING

  • Work envelope: 55 inch x 55 inch
  • Max thickness: 8 inch
  • Table size: 80 inch x 65 inch
  • Speed: 180 inches/min
  • Linear positional accuracy: ±0.0010 inch
  • Repeatability: ±0.0010 inch
  • Ballbar circularity: ±0.0025 inch
  • Tilt-A-Jet head option available
  • All materials except, Magnesium or Beryllium
Haas_DT2_1

HAAS DT-2 (5-axis)

  • X-Axis travel: 28 inch
  • Y-Axis travel: 16 inch
  • Z-Axis travel: 15.5 inch
  • Spindle nose to table: 21.5 inch
  • Spindle nose to table: 6 inch min
  • Spindle rating: 15 hp
  • Spindle speed: 10,000 rpm
  • Table: 34 inch (length) x 15 inch (width)
  • Renishaw probe
HAAS_SL30T

HAAS SL30T

  • Power: 30 hp
  • Max speed: 3400 rpm
  • Turning diameter: 17 inch
  • Machining length: 39 inch
  • Swing: 21 inch
  • Tailstock: No
Hardinge_LC_Cobra_42

HARDINGE LC COBRA 42

  • Power: 7.5 hp
  • Max speed: 5000 rpm
  • Turning diameter: 7.75 inch
  • Swing: 21 inch
  • Machining Length: 13.9 inch
  • Tailstock: No
Hardinge_Conquest_VT200_1

HARDINGE VT 200

  • Max turning diameter: 15.75 inch
  • X-Axis travel: 7.94 inch
  • Z-Axis travel 19.88 inch
  • Max swing diameter: 25.5 inch
  • Power: 30 hp
mitsubishi_fa10sm

MITSUBISHI FA10SM EDM

  • Table size: 23.23 inch x 20.224 Inch
  • Max work piece: 31.5 inch x 23.6 inch x 8.4 inch
  • Travel X: 13.78 inch
  • Travel Y: 9.84 inch
  • Travel Z: 8.66 inch
  • Wire Diameter: 0.07 - 0.3 mm



Let us know how we can meet your machining requirements:

CONTACT US
